AwZ | 10 September 2022 | 4.85 MB
As its name suggests, "Oscilloscope" allows you to observe the incoming signal of the current selected track like a traditional oscilloscope would do.
I didn't find a Max device doing it properly, so I made one.

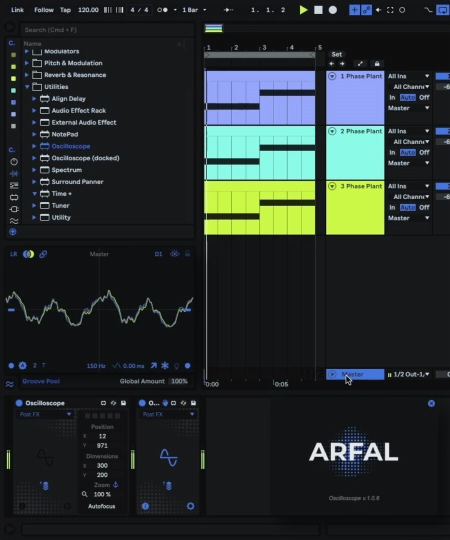

One important point is that you'll need ONLY 1 INSTANCE per session. All you have to do is to load the "Oscilloscope" device on the track of choice, open the floating window and configure his position and his size (it was originally designed to fit in empty, or not so used, boxes of Live, like the groove pool, overview or information ones). Once it's done you can save it in a template, or as a preset, to avoid doing these steps the next you'll start a new session.
Here is a list of the Oscilloscope features
Only one instance needed: « Oscilloscope » displays the signal, the name and the color of the selected track (even Master track),
Apple "Silicon" M1 compatible,
Floating window: Draggable, zoomable, resizable, integrable in the Live environment,
"Anchored" zoom mode,
5 presets slots to save and load user settings (mappable for recall),
Pre FX / Post FX / Post Mixer: Input selector (affects all the selected tracks),
Lock: displays only the signal of the selected track when closing the padlock,
Left / Right - Mid / Sides selector
Left / Mono / Right channel selectors + Unlink/link Left & Right channels button,
Phase Shift Visualization: The "Left channel" is the reference,
2 synchronized modes based on detected pitch values: Auto (custom based synchronization, n*T (periods) ) & Manual (horizontal zoom),
Filter (LPF) parameter to limit the bandwidth and avoid artifacts/ get a cleaner signal display. To get best stabilization results, try to not filter out lower than the lower frequencies of the signal you want to observe,
Monophonic Pitch Detection display (thanks to « sigmund~ » by Volk Bohm),
« Vertical Zoom Slider » and Reset button,
« Curves Thickness Slider » and Reset button,
Dark / Bright Background,
Decay: this value defines the that the curves take to disappear,
Direction (Up & Down): changes the start direction of the curves,
Show / Hide Parameters: Click on the opened eye to close it and make most of the parameters disappear,
Live window Auto-Refocus (thanks to « live.tools » by 11olsen), this avoids having to click twice on the Live window to recover focus,
Bring to front: brings back the floating window to the foreground,
"Oscilloscope" has been initially designed to act like a traditional oscilloscope with the addition of a filter to stabilise the visualization, and more important synchronised on a periodical basis by detecting the incoming pitch (C2 or G2 will display the same number of periods). It was made to observe tonal content at first (basses, synths).
On another hand, I'm working on a device called « Histoscope » based on beat synchronisation and mainly designed to observe audio in a « wider » way. Since UI and process are totally different I decided to separate these in 2 devices.
I invite you visit my Facebook or Tweeter account, where I occasionally publish « work in progress » gifs
In your ed Oscilloscope 1.xx.zip file you'll find
A folder called « Package (Live 11 ONLY) ». Inside this folder you'll find a video file !!! Installation !!! and a package ARFAL - Oscilloscope. This package pes to integrate "Oscilloscope" and "Oscilloscope (docked)" in the "Audio Effects" section , in the "Utilities" folder. This is expental so PLEASE follow carefully the "!!! Installation !!!" video and install at your own risk !
Whats new in this version
NEW: Floating windows now can also be moved by dragging & dropping it, NEW: added option to "anchor" the position of the floating window while zooming, FIXED: issue with the zoom behaviour, + Minor patch Modifications.
Windows 7 or higher
